Connect a Compatible Bluetooth Laser Measurer

Increase the accuracy of your floor plans by using a compatible Bluetooth laser distance meter.

magicplan's AR Scan feature (iOS) is 95-98% accurate. However, for 100% accuracy, or for devices that cannot use our scanning features, you may wish to connect a Bluetooth laser meter. Read on to review the steps for connecting your Bluetooth laser meter, or click the link below to see the list of Bluetooth lasers that are compatible with magicplan.

Compatible Bluetooth Lasers

How to measure with your Bluetooth laser in the app:

  1. Turn on your Bluetooth laser meter, then open your project.
  2. Open a floor plan.
  3. Tap on a room to enter it, and tap on a wall or object.
  4. You can access the element's measurements in two ways:
    1. Tap the wall or element you wish to edit, then access the details menu.
      1. On a tablet, tap the "i" icon in the upper right corner. On a mobile phone, swipe up from the bottom of the screen once the element is selected.
      2. Tap on the measurement in the details menu.
    2. Tap the visible blue numeral measurement of the element directly on the floor plan.
  5. In the "Change Measurement" pop-up, tap the "Laser" option. You will see a list including "My Devices" and "Nearby Devices." Tap "Connect" next to the model you are using. Once your device is connected, it will be moved to the "My Devices" section.
  6. Proceed to scan the distance with your laser, then tap "Done".
  7. To continue measuring other dimensions with your laser meter, repeat steps 2-5.

Having trouble connecting your laser? View our troubleshooting article here



Check out this demo from our YouTube channel to see this feature in action:

For more tutorials and tips, you can check out our channel by clicking the link above!

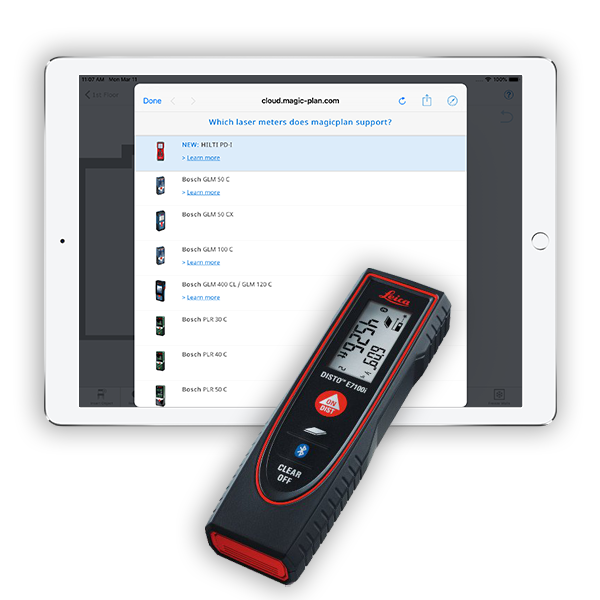

Bluetooth Laser Measurers Supported by magicplan

This list contains the individual devices that have been tested and confirmed as compatible. Click one of the links below to search by brand:

Bosch | DeWalt | Leica | Stabila



Bosch Laser Devices

Bosch GLM 150-27 C

Bosch GLM 150-27 C

Bosch GLM 100-25 C

Bosch GLM 100-25 C

Bosch GLM 50 C

Bosch GLM 50 C

Bosch GLM 50-27 C

Bosch GLM 50-27 C

Bosch PLR 50C-1

Bosch PLR 50 C

laser

Bosch PLR 40 C

Bosch 400 CL Blaze

Bosch 400 CL Blaze

Bosch AdvancedDistance 50C

Bosch AdvancedDistance 50C

Bosch Universal Distance 50C

Bosch UniversalDistance 50C

Bosch Universal Distance 50C

Bosch UniversalDistance 40C



DeWalt Laser Devices

DeWalt DWHT78200-XJ

DeWalt DWHT78200-XJ



Leica Laser Devices

laser

Leica DISTO D1

Leica DISTO D2 - 330 ft range - 7 measurement modes

Leica DISTO D2

Leica DISTO D110 - 60 m range - Speed, Accuracy

Leica DISTO D110

81mguxKiMZL._AC_SX679_

Leica DISTO D510

laser

Leica DISTO 810

laser

Leica DISTO X3

laser

Leica DISTO X4





Stabila Laser Devices

laser

Stabila LD 250 BT



Other Laser Devices

laser
Hilti PD-I

Johnson Level LDM330_

Johnson Level LDM330

Stanley TLM 99s

Stanley TLM 99s



ℹ️ Note: All of the listed models have been tested for compatibility with magicplan. App compatibility with a device model that is not listed here may be possible, but is not guaranteed.

For users in the U.S., Bosch "Blaze" Lasers with the same model number as the ones listed are known to be compatible with magicplan.

If there is a Bluetooth laser measurer that you would like to use with magicplan, please submit it as a feature request for consideration.
